Development of TAPS-8
Real-Time Biological Data from a Mooring:
Zooplankton Abundance

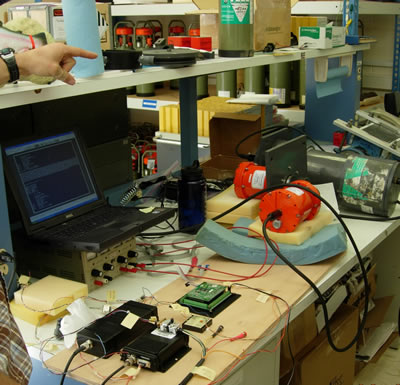

Closed-loop bench test of complete system.

The EcoFOCI team has developed and deployed a mooring system for acoustic zooplankton monitoring using the TAPS-8 (Tracor Acoustic Profiling System). The system incorporates real-time data transmission and reporting capabilities via satellite and iridium satellite modem. This system seasonally (April-September) sends daily data from the southeastern Bering Seashelf to our laboratory, including temperature, salinity, pressure, and fluorometer data.

The TAPS-8

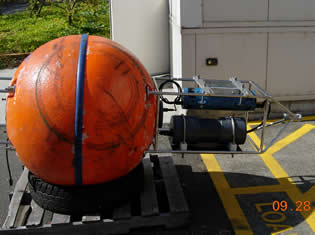

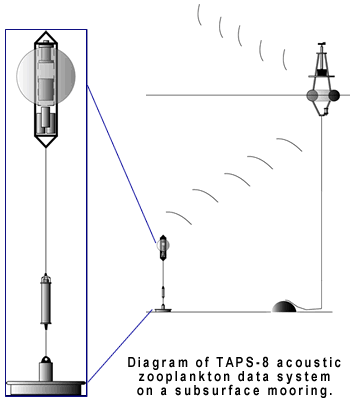

The TAPS-8 testing, performed at NOAA/PMEL in September 2005, was designed and setup as a closed, real time system. The TAPS-8 unit was deployed on a sub-surface mooring (see photo sequence below), with transmission of TAPS data via acoustic modem on the sub-surface buoy to a surface-mounted modem. The modem data were then transmitted through Iridium satellite communication to the PMEL Laboratory.

The TAPS-8 real-time data relay system was deployed on a Bering Sea sub-surface mooring April - September 2006 and 2007.

Satellite test ouput, Hex, 28-Sep-2005 14:38 PST @@@«ã ### AAAA091C0E1D091C0E1E53EA000200000404040404 0404040013BD5700000007415DF59B001326120000 00063C4904160013C42D0000000701629BC5001367 0F0000000694097C7B00144222000000072FB6168A 0013B3E800000007037A64780013D581000000072E 24E0150013E54E00000007413DFB26042E0031225B 00000057BC9ABD1B03B7001E6C7A0000000A02E215 9A03D1002051690000000B973B6EE503C4001F95E7 0000000B38C047FF03C8001FC0C00000000B2B6C6F 2803DB0020B9C70000000B5C4FB3A303BD001EE9BD 0000000AA09337B90492004434E2000000E8984920 5203B5001E72100000000A068E41FC03DB00209874 0000000B295A4B9803B5001ED4D80000000AD83471 3403BC001F3CA10000000AF0CB367503DC0020F9A0 0000000BA2FD898803B5001EA8600000000AA2C3FD DC04A300492EA50000013E09DBF8E103CD001FF819 0000000AFED5905503B6001E87650000000A452913 7903BF001ED9430000000A3C684E0B03E7002166B1 0000000BC2C6A20503C7001F9CA00000000B170817 F003B5001EECCE0000000AF2CDA4EE048000417B72 000000F134351BE203DE0020FCDE0000000BADEB1B 4E03B9001EB8970000000A68F7799F03BD001F1DF2 0000000AB31E0F9E03DF002112090000000B80D0D5 D903C6001F46EE0000000AA006476E03C6001FB186 0000000B2C07585A$$$204FB5$  Satellite test ouput, Hex, 28-Sep-2005 14:44 PST @@@4 $$AAA09 ###AAAA091C0E25091C0E2653EA0002000004040404040404040 013DAB30000000707BC23A70013F406000000071A3F1F3A00 13B4E500000006ABBE498D00143C610000000730896B55001 43DAE0000000726E1955200141C1D0000000746D0CE450013 FFAB00000006FDC904770013636200000006B0B22EC204850 03F4E7D000000AEE3C7697103DA0020D94B0000000BA6E96D B703CA001FD7D60000000B013B0E0603D3002032100000000 AF44C375803F20021F6D30000000BFC16401B03E40021ABB4 0000000C8E1C24C403C4001FD90C0000000BAC5A26D8046A0 03A60BE0000008B4CB50EF603C6001F0FD400000009F6F0CB B803D6002019080000000AD85F30E003DA0020EFC70000000 C0ABC0BF303D70020DBF20000000C42E5E6FA03CE0020218D 0000000B5DCAF2C903CE001FC9120000000AD47CFECA047C0 03A4484000000799642068003CC001F88EE0000000AA6AD13 2E03CB001FBA7C0000000B295F1C1C03CE002059440000000 BD967A55C03CE002036FD0000000BA5C5163103C4001F9426 0000000B08A88DF603BB001EEA820000000A67D01BFA04860 04267F8000000CA998AE5F403B9001F0D5E0000000AD521C0 B603BF001F643C0000000AE932CA3803BA001EB57E0000000 A1972A53E03DA0020EF7F0000000BB991C64B03ED002221AE 0000000C9D5DCEA603CF0020043C0000000B3D17A1EC$
